BF7264B/B+ Protocol Analyzer Device

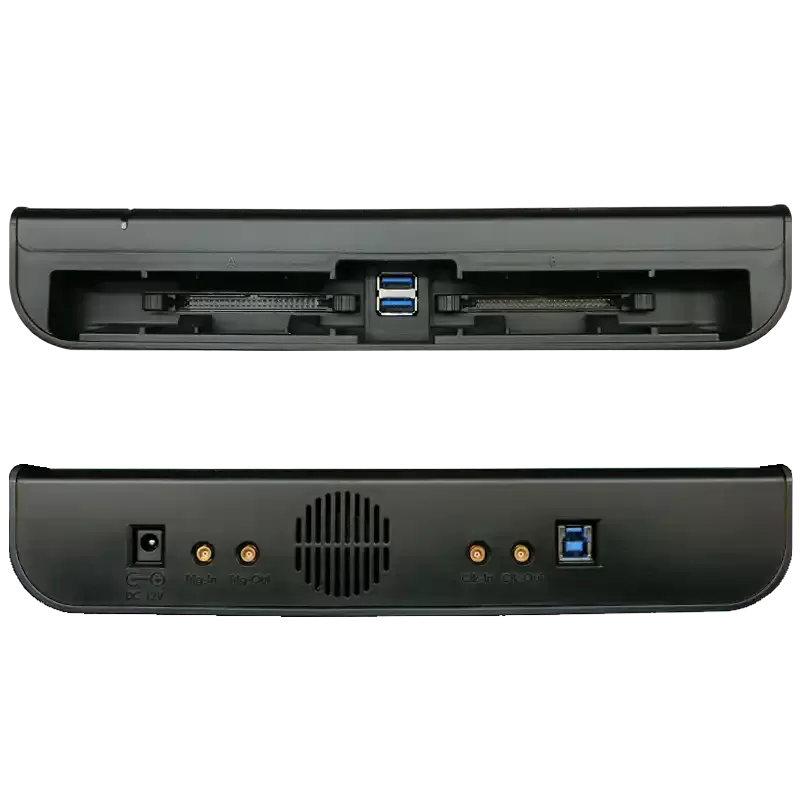

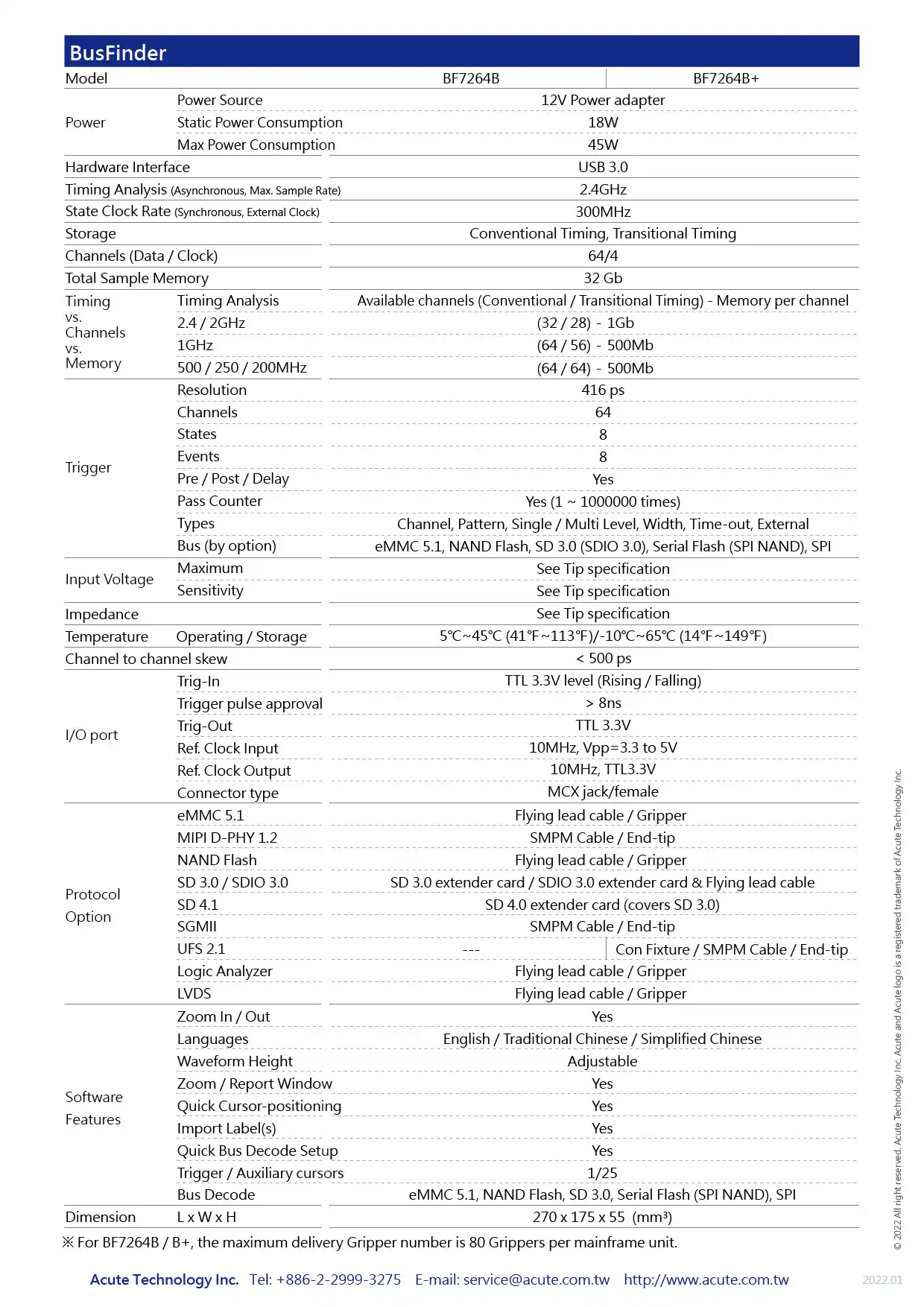

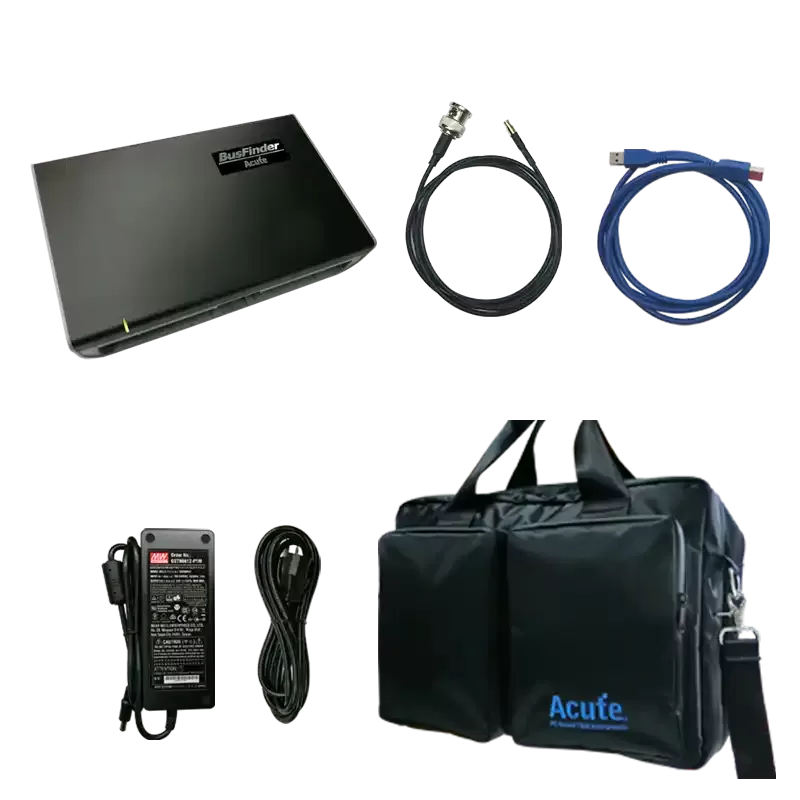

BusFinder Protocol Analyzer

• Real-time data display, post-capture waveform
• Trigger for commands or data
• 64 channels Logic Analyzer
• 32Gb total memory Protocol Analyzer
• Different active probes for different protocols for easier connections
• Protocol Option:eDP1.4a, eMMC 5.1, MIPI D-PHY 1.2, NAND Flash, SD 3.0(SDIO 3.0), SD 4.1 (UHS-II), SGMII
• Different active probes for different protocols for easier connections
• Protocol monitor like dash camera for long time surveillance (months)

Related Products

Protocol Analyzer is PC-based with USB 3.0 interface that makes it professional, reliable and cost-effective. Moreover, it acts as a Protocol logger as well as a Protocol Monitor. A very versatile tool.

Functions:

• Real-time data display, post-capture waveforms
• Trigger for commands or data
• Different active probes for different protocols for easier connections
• Filter data to save more commands
• Hide data for easy reading
• Search data for quick finding
• Statistics for commands and data
• Two voltage detects to find design bugs from voltage drop
• Use PC hard disk (SSD) to log long time data
• Protocol monitor like dash camera for long time surveillance (months)

Protocol Option:
• eDP1.5 Option:Support eDP1.5,Up to 5.4Gbps/per lane, 4 Lanes
• eMMC Option:Support eMMC 5.1 HS400 / HS200 / CMD Queue
• MIPI D-PHY 1.2 Option:Support D-PHY V1.2,Up to 2.0Gbps per lane,1 + 4 Lanes
• NAND Flash Option:Support ONFI 4.1 (NV-DDR3),Mode 8 / Toggle DDR 2.0~267MHz
• SD 3.0 (SDIO 3.0) Option:Support SD 3.0 SDR104 / SD6.0 Legacy mode SDR104, DDR200, Command Queue/ SDIO 3.0
• SD 4.1 (UHS-II) Option:Support UHS156,Up to 1.56Gbps per lane
• SGMII Option:Speed support 1000M, 100M, 10M

Support Logic Analyzer:

• 2.4GHz timing analysis
• 8-state flow chart bus triggers
• Bus decodes with waveforms
• Stacks with a DSO to form as an MSO
Option
• LA:Support eMMC 5.1, NAND Flash, SD 3.0 (SDIO 3.0), Serial Flash (SPI NAND), SPI
• LVDS:Low-voltage differential signal measurement supporting logic signals

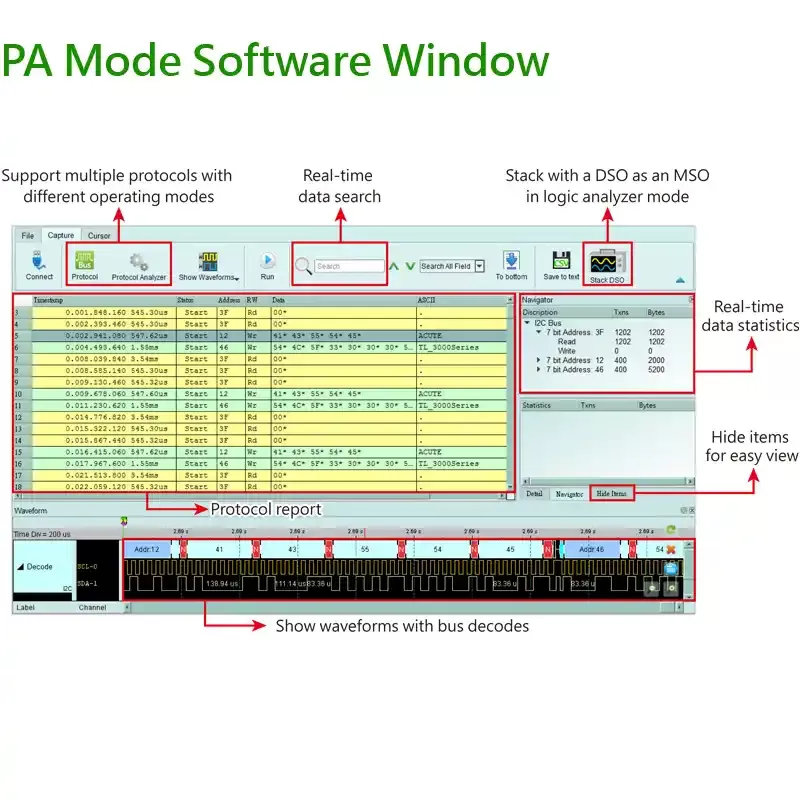

Protocol Analyzer
It is hardware decoding, may log protocol data very long time if without waveforms. Application timing: Preliminary protocol debug.

Protocol Analyzer
Show real-time protocol data.
Application timing: massive protocol data with some idles in between.

Protocol Logger
Like data logger, save massive data into SSD hard drive.
Application timing: massive protocol data.

Protocol Monitor
Like dash cameras, record protocol data by the device’s memory only.
Application timing: trigger event only happens in very long time.

eDP1.5 Option

eMMC Option

MIPI D-PHY 1.2 Option

NAND Flash Option

SD 3.0 (SDIO 3.0) Option

SD 4.1 (UHS-II) Option

SGMII Option

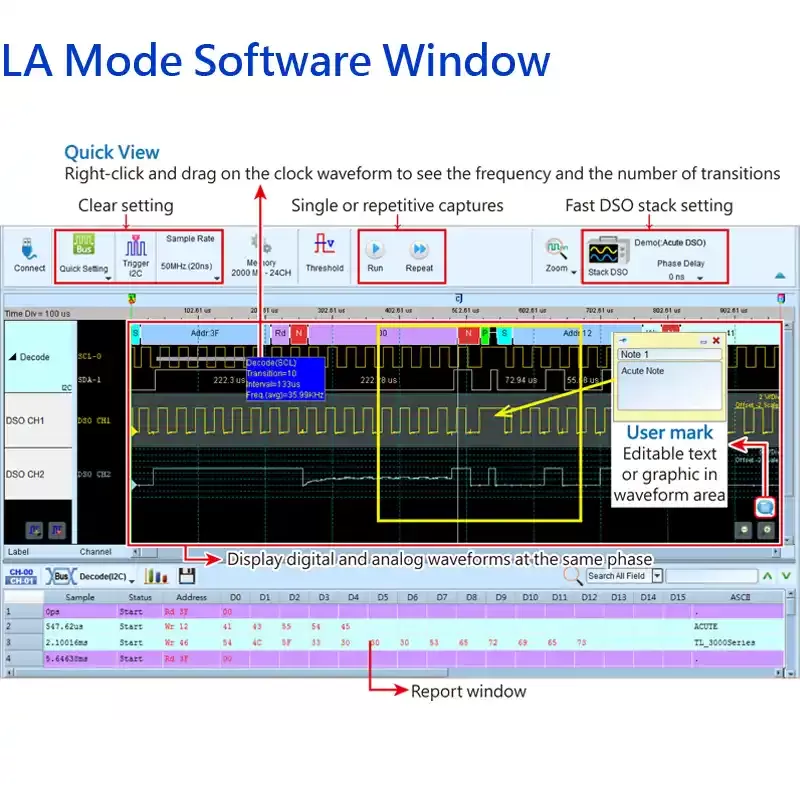

Logic Analyzer (LA) Mode

• Capture digital waveforms and support bus decodes. Able to stack with a DSO to form as an MSO.

• Provides multiple storage modes, users could select to have long time recording or precision acquisition.


• Long Time Record: Transitional Storage VS Compressed Storage

For signal capture and analysis, usually require to record the signal for a long time. If the data is stored in a compressed way, it will cause your software to lag or even stop functioning when decompressing the data after it is sent back to the computer. Because PC memory size might insufficient for decompressed data size. To satisfy the requirement of smooth software operation and long-term recording without missing any data, the storage method adopted by the Acute analyzer is transitional storage rather than compression. After returning to the PC software, it doesn"t need to do the decompression. The decoded results can be displayed while the analysis is finished.

    LA Option

    LVDS Option
