MSO2216B Mixed Signal Oscilloscope

MSO2000 Mixed Signal Oscillosc

• PC-based, USB3.0 interface
• 16 Channels (display digital and analog waveforms of the same channel)
• Digital Inputs : 2 GHz Timing, 200MHz State Analysis
• Analog Inputs : 200 MS/s (Max.), Bandwidth 40 MHz
• 8 Gb Memory
• PC RAM storage for streaming mode
• Utility model patent of Taiwan number M601827

Related Products

The MSO2000 series is a 16-channel 3-in-1 (logic, protocol, and oscilloscope) analyzer, with each channel supporting simultaneous measurement of both analog and digital signals. When measuring power management-related protocols, it can not only decode the protocols but also simultaneously record voltage values. Currently, the MSO2000 series offers two different signal and bus analysis modes: logic analyzer mode and protocol analyzer mode.

In the past, many users had questions or were unclear about the voltage threshold settings in the logic analyzer. Therefore, Acute has added a one-click automatic voltage threshold detection and configuration feature in the MSO2000 series products to save users the time required for configuration.

Logic Analyzer (LA) Mode

• Capture digital waveforms and support bus decodes. Able to stack with a DSO to form as an MSO.

• Provides multiple storage modes, users could select to have long time recording or precision acquisition.

• Long Time Record: Transitional Storage VS Compressed Storage

For signal capture and analysis, usually require to record the signal for a long time. If the data is stored in a compressed way, it will cause your software to lag or even stop functioning when decompressing the data after it is sent back to the computer. Because PC memory size might insufficient for decompressed data size. To satisfy the requirement of smooth software operation and long-term recording without missing any data, the storage method adopted by the Acute analyzer is transitional storage rather than compression. After returning to the PC software, it doesn"t need to do the decompression. The decoded results can be displayed while the analysis is finished.

    Digital and Analog Waveform Settings

    Each channel supports both digital and/or analog waveforms measurements, voltage resolution can be changed between 2 levels for all channels at the same time

    Flow chart bus triggers

    Power trigger for serial bus, 8-states flow chart setting with Counter/Timer

    Detail parameters for each states

    Stack With Other Vendors of Oscilloscope

    MSO Enables Digital & Analog Channels
    (Using the same channels)

    Digital & Analog Signals From MSO and External DSO From Other Vendors
    *[1]: Decode & Digital Signals*[2]: MSO Analog Signals*[3]: External DSO Signals

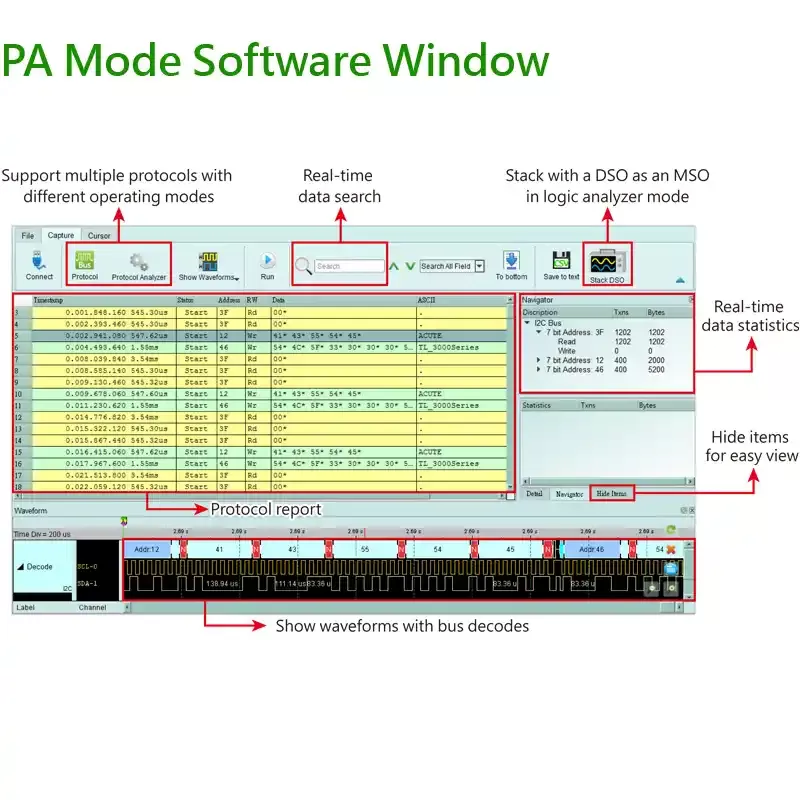

    Protocol Analyzer (PA) Mode
    It is hardware decoding, may log protocol data very long time if without waveforms. Application timing: Preliminary protocol debug.

    Protocol Analyzer
    Show real-time protocol data.
    Application timing: massive protocol data with some idles in between.

    Protocol Logger
    Like data logger, save massive data into SSD hard drive.
    Application timing: massive protocol data.

    Protocol Monitor
    Like dash cameras, record protocol data by the device’s memory only.
    Application timing: trigger event only happens in very long time.

    DSO Spec.
    Power source
    USB bus-power (+5V)
    Static power consumption
    Max power consumption
    Acquisition Mode
    8 bits Sampling [Record length]
    ≧12 bits Sampling [Record length]
    ≧14 bits Sampling [Record length]
    Input channels
    Input coupling
    Input impedance
    Overvoltage protection
    Ch-Ch isolation
    Ch-Ch skew
    40 MHz
    Rise time
    12 bits
    Input sensitivity
    Offset range
    DC accuracy
    Bandwidth limit
    Protocol Trigger / Decode
    Electrical Validation (Protocol)
    LA Spec.
    Power Source
    USB bus-power (+5V)
    Static Power Consumption
    Max Power Consumption
    Hardware Interface
    USB 3.0
    Timing Analysis (Asynchronous,Max. Sample Rate)
    2 GHz
    State Clock Rate (Synchronous,External Clock)
    200 MHz
    Conventional Timing, Transitional Timing
    Total Memory
    Timing Analysis
    Available Chs (Conventional / Transitional Timing) - Memory per Ch
    4GHz Timing [Available Chs] - Memory per Ch
    2GHz Timing [Available Chs] - Memory per Ch
    [8/7] - 1Gb
    1GHz Timing [Available Chs] - Memory per Ch
    [16/14] - 512Mb
    500MHz Timing [Available Chs] - Memory per Ch
    [16/16] - 512Mb
    250MHz Timing [Available Chs] - Memory per Ch
    [16/16] - 512Mb
    Channel to channel skew
    < 1ns
    Input channels
    Input impedance
    Max. (Non-destructive)
    over ±42V DC & AC
    Input operation
    ±20V / ±10V (Standard / High Resolution)
    Input sensitivity
    200MHz (1Vpp)
    Threshold group
    2 (CH0~7 & CKI, CH8~15)
    Threshold range
    Threshold resolution
    Threshold accuracy
    ±100mV + 5%*Vth
    Trigger resolution
    Trigger types
    Channel, Pattern, Single / Multi Level, Width, Time-out, Setup/Hold Timing Violation, External, Manual
    Protocol Trigger
    BiSS-C, CAN2.0B/CAN FD, DALI, DP_Aux, eMMC 4.5, eSPI, HID over I2C, I2C, I2S, LIN2.2, LPC, MDIO, MII, Mini/Micro LED, MIPI I3C 1.1.1, MIPI RFFE 3, MIPI SPMI 2, Modbus, PMBus, Profibus, RGMII, RMII, SD 2.0 (SDIO 2.0), SENT, Serial Flash (SPI NAND), SMBus, SPI, SVI2, SVI3, SVID, UART (RS232), USB PD 3, USB1.1
    Protocol Analyzer
    BiSS-C, CAN2.0B/CAN FD, DALI, DP_Aux, eSPI, HID over I2C, I2C, I2S, LIN2.2, MDIO, MII, MIPI I3C 1.1.1, MIPI RFFE 3, Modbus, PMBus, Profibus, PWM, RGMII, RMII, SMBus, SPI, SVI3, SVID, UART (RS232), USB PD 3, USB1.1
