UFS2.1

BusFinder Protocol Analyzer

Support UFS 2.1 Gen 3,Rate A/B,Up to 5.8Gbps per lane,2 Lanes

Related Products

Features:
– Supports MIPI M-PHY 3.0, Up to 5.8Gbps ( Gear 3, Rate A / B ), 2 Lanes
– Can simultaneously display Unipro or UFS protocol packet data in tabular form, including command parsing
– Use 32Gb RAM as the buffer to stream all M-PHY data into the SSD HD in order to record all data flow from PWM Mode to High Speed Mode.
– “Data Filter” filters unwanted data to save memory.
– “Search” searches specific data.
– “CRC Packet” displays and counts CRC
– Unipro / UFS command statistics include numbers of packets, individual command, different data length, and errors

Simultaneously display Unipro

Simultaneously display Unipro or UFS protocol packet data in tabular form

Including command parsing

Unipro / UFS command statistics include numbers of packets, individual command, different data length, and errors

Unipro, UFS Command trigger

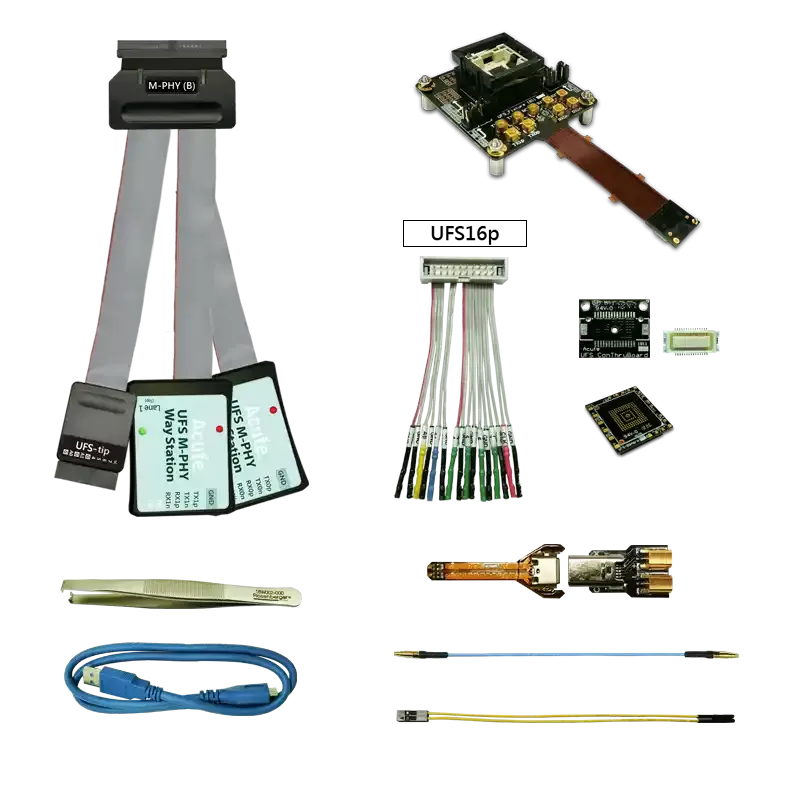

Tip

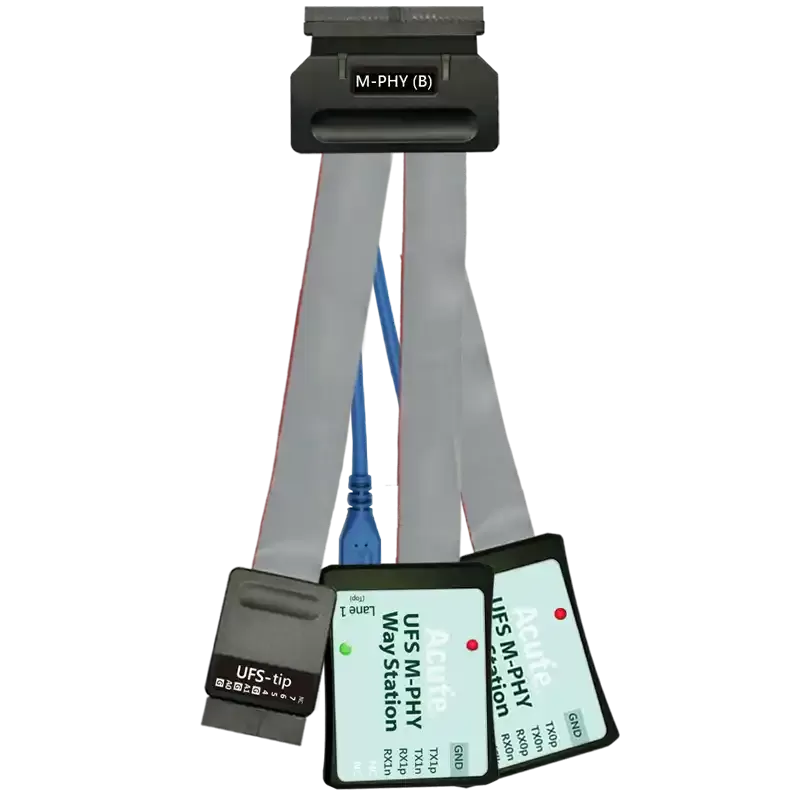

UFS-tip / End-tip
Number of Chs
4+2 (Data+Analog) / 1-Diff.
Option Model
UFS2.1
Threshold Range (Data)
-0.5V ~ +4.8V / -
Threshold Resolution (Data)
21mV / -
Threshold Accuracy (Data)
±100mV + 5% *Vth / -
Input Voltage Non-destructive Max. (Data)
±15V DC+AC peak / ±10V
Input Voltage Operation (Data)
-1V ~ 8V / 0 ~ 5V
Input Voltage Sensitivity (Data)
~300mV / ~200mVpp
Impedance (Data)
1MΩ || 5pF / 250Ω
Input Voltage Non-destructive Max. (Analog)
-0.5V ~ +8V DC+AC peak / -
Input Voltage Operation (Analog)
0V ~ 4V / -
Input Voltage Resolution (Analog)
~1mV / -
Input Voltage Sampling Rate (Analog)
1M / -
Impedance (Analog)
1MΩ || 100pF / -
[Solution] UFS2.1
