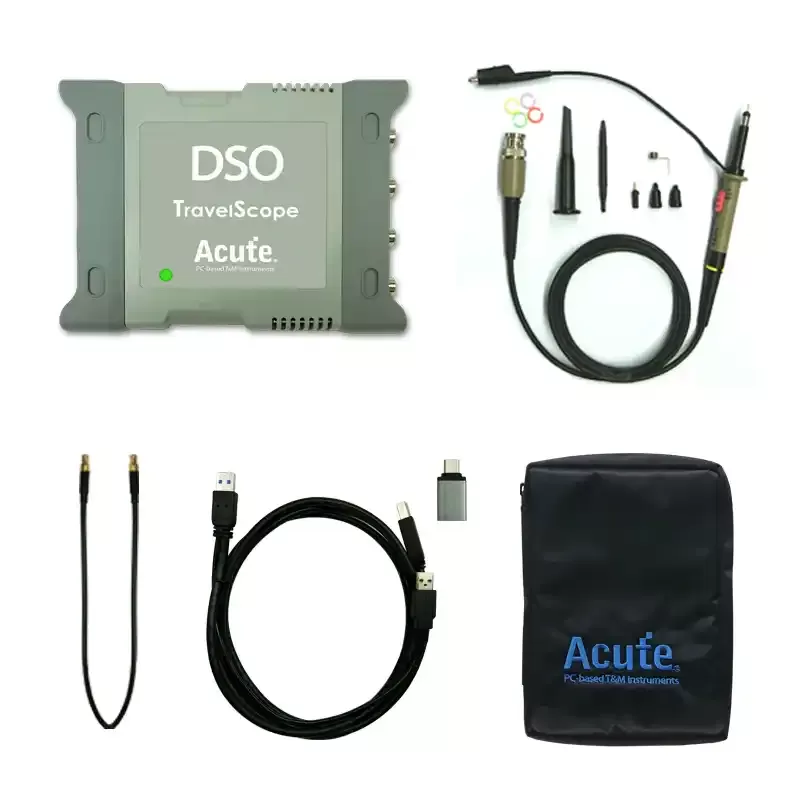

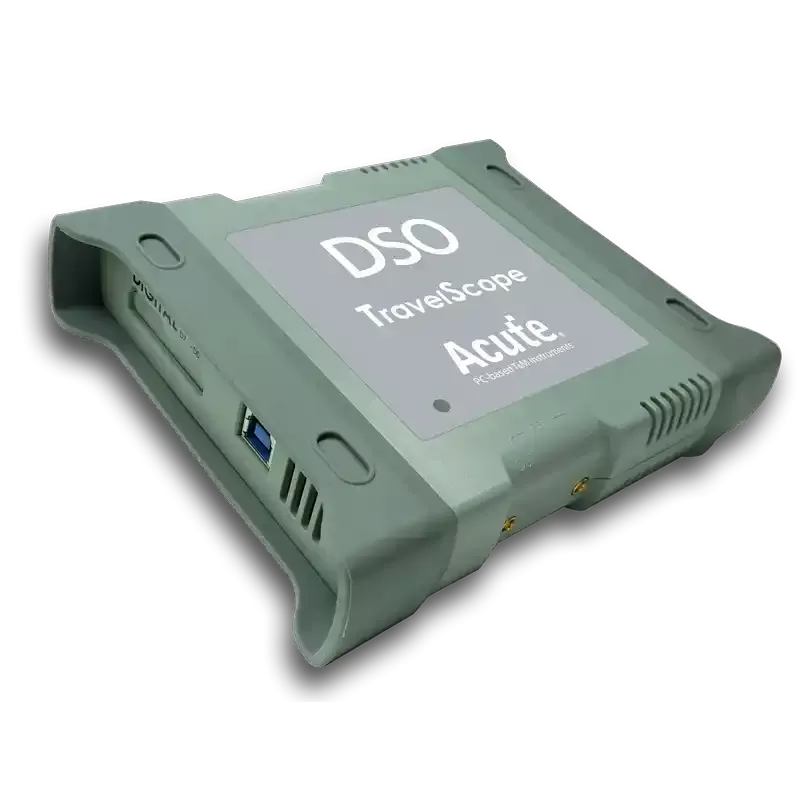

TS3124B DSO

TS3000 series DSO is compact and portable, making it suitable for on-site testing. It also offers resources for secondary development.

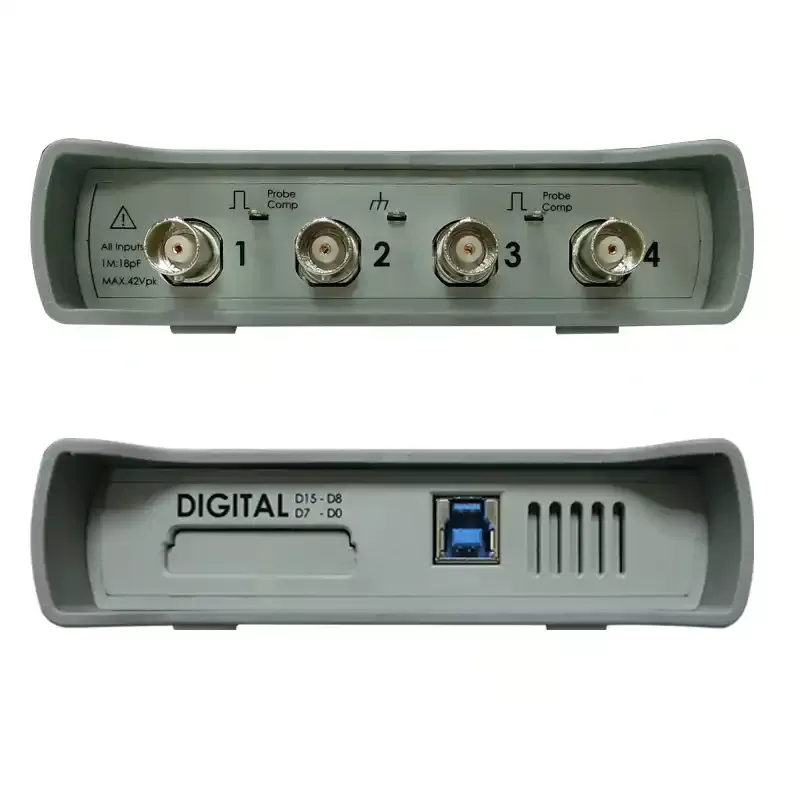

TS3000 uses a USB 3.0 interface for power, enabling high-speed data transmission and eliminating the need for complicated power connections, making it easy to use. The TS3000 has 4 channels, a sampling rate of 1 GS/s, and a bandwidth of 200 MHz. Each channel has a record length of 128Mpts. In addition, the TS3000 also provides a 3-digit digital multimeter and a 5-digit frequency counter, allowing it to handle multiple signals simultaneously for monitoring and analysis. Whether you are in electronic testing, communications, or embedded system development, it offers outstanding and accurate signal analysis capabilities.

TS3124B offers various bus decoding and trigger positioning functions, allowing for the pinpointing and real-time analysis of specific Command / Address / Data content within the bus, thereby identifying and analyzing issues promptly.

Functions：

Protocol Decode & Trigger Function
Provides, CAN/CAN-FD, I²C, LIN, MIPI I3C 1.1, ProfiBus, SPI, UART(RS232), USB1.1,… protocol decode and trigger function, which is able to trigger and decode on the specified Command/Address/Data...

Decode the I2C waveforms

Decode the differential CAN signals with a differential probe. (CH1: Differential Probe, CH2: CAN H, CH3: CAN L)
※ Supports CAN-FD, CAN2.0

Runt Trigger - Positive Runt
Use 2 voltage thresholds and pulse width to trigger on either/ ±runt signals.

Runt Trigger - Negative Runt

Timeout Trigger
Trigger when no pulse is detected within a specified time, range from 2ns to 50s.

Width Trigger
Pulse width range from 8ns to 50s.

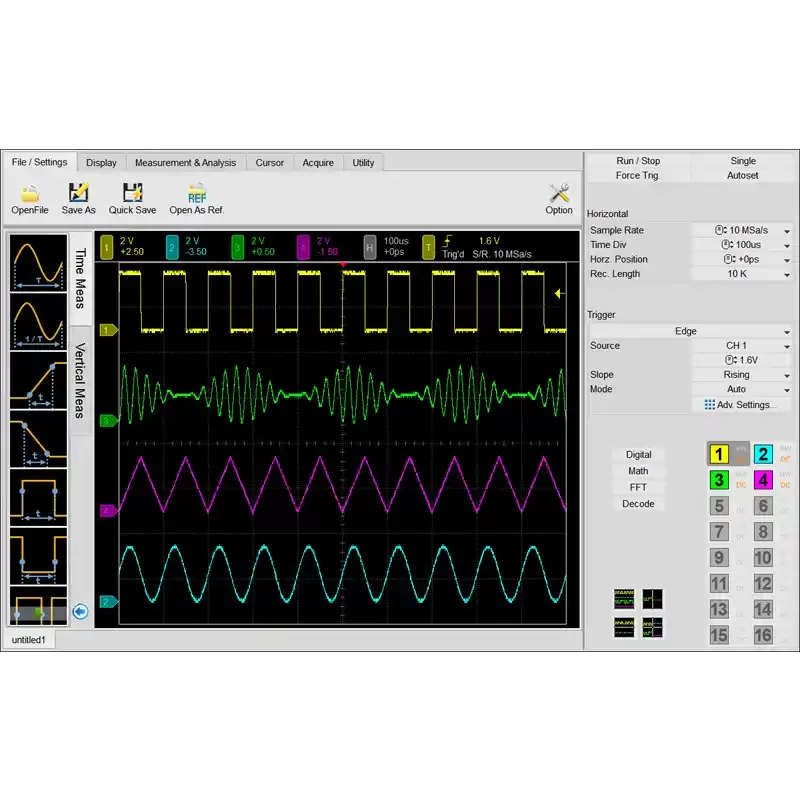

Multiple Windows

Multiple Window feature provides 4 display types (1x1, 2x1, 1x2, 2x2), which could displays 16 channels in maximum 4 different windows, provides clear waveform readability without lower the vertical resolution.

Spectrum analysis (Fast Fourier transform, FFT)

Apply FFT to the selected channel.

Vertical Offset & Zone View

Voltage division from 2mV/Div - 10V/Div combined with the channel independent Vertical Offset settings, which can be used for glitch measurement and analysis on DC power, and observing the ripple and overshooting voltage on DC offseted voltage. It is also possible to use 16Bit high vertical resolution mode (TS3124H/V) with the Zone View feature to observe the DC voltage and ripple signal together in the same time.

Digital Voltmeter, DVM

Provides voltage root-mean-square, voltage average and frequency counter function for the selected channel.

Measure 1 KHz, 2.5 Vpp square waveforms by the measurement function.

Measure 1 KHz, 2.5 Vpp square waveforms by the DVM function.

Measurement

More than 20 types of waveform measurements with customized threshold settings features, provides real-time update for vertical, time and channel to channel timing measurements with statistic features.
Time：Frequency, Period, ±Duty, ±Period, Rise/Fall Time, Delay, Phase
Vertical：VMax, VMin, VHigh, VLow, Vpp, VAmp, VMid, VMean, VRMS, ±Overshoot, Rise/Fall Preshoot
Counter：Edge Count, ±Pulse Count
Math：Add, Subtract, Multiple, Divide, XY, Absolute, Square Root, LogA, LnA, Exponential, Integral
