UART Electrical Validation

Performing UART Electrical Validation with an oscilloscope ensures that the UART meets its defined specifications. After an extended burn-in test, the electrical characteristics of the signal under test can be confirmed to align with the required specifications.

For protocol electrical validation, UART protocol electrical characteristics are typically analyzed in two dimensions: vertical (voltage) and horizontal (time/phase).

To utilize this functionality effectively, first select the appropriate protocol and its corresponding specifications. Then, conduct repeated tests to generate an electrical characteristics report. The test parameters, including specifications and standards, will vary depending on the UART speed.

Supported Models:

TS3124V (4-channel DSO)

TS3000 Specifications PDF

MSO3124V (4-channel DSO + 16-channel LA)

MSO3000 Specifications PDF

Overview Report

Reference Point Dialog & Waveform:

HTML Report

UART Electrical Validation Settings:

1. General Settings: Channel sources, working voltage and speed

2. Decode Settings:

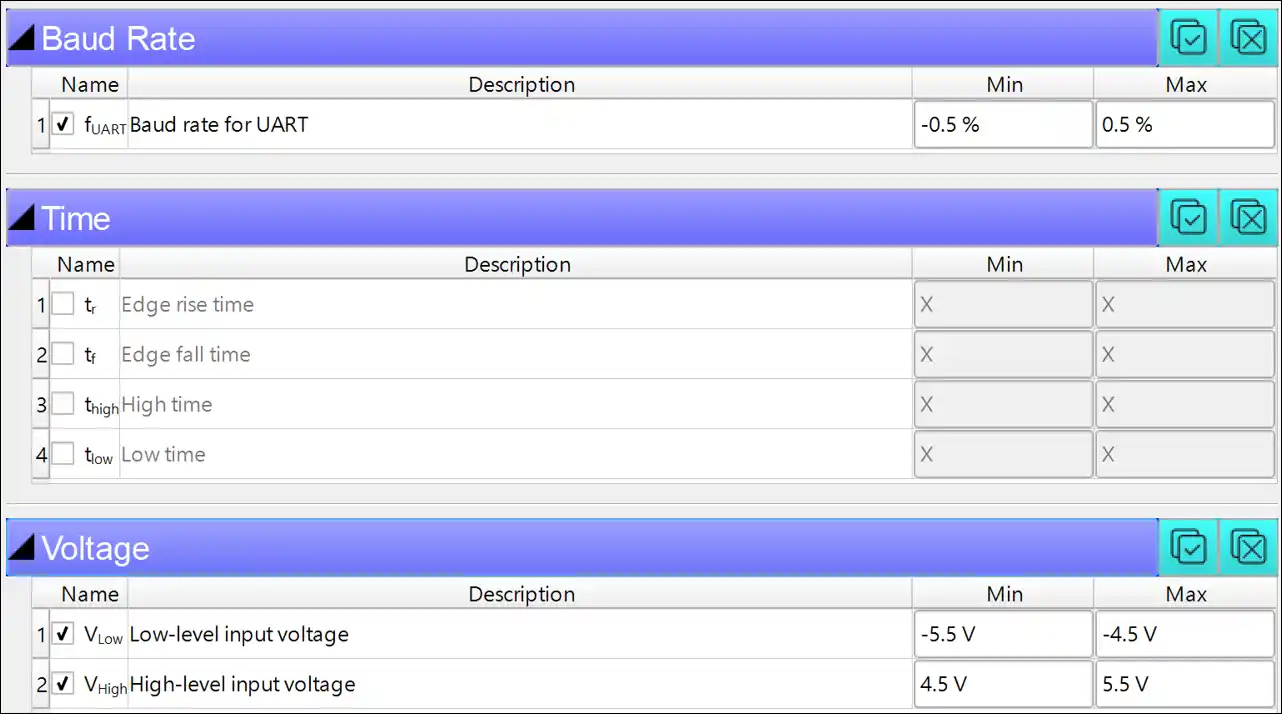

3. Electrical Validation Parameter Settings: Frequency, Timing, Voltage limitation

4. Software EV control panel:

Stop Conditions:
Stop when acquired X times
Stop when Result Fail > X times

Information:
Select waveform

Save File:
Save as Html
Save as .MOW (Software format)

Electrical Validation Solution PDF
