Recommended Models: MSO3124H, MSO3124V

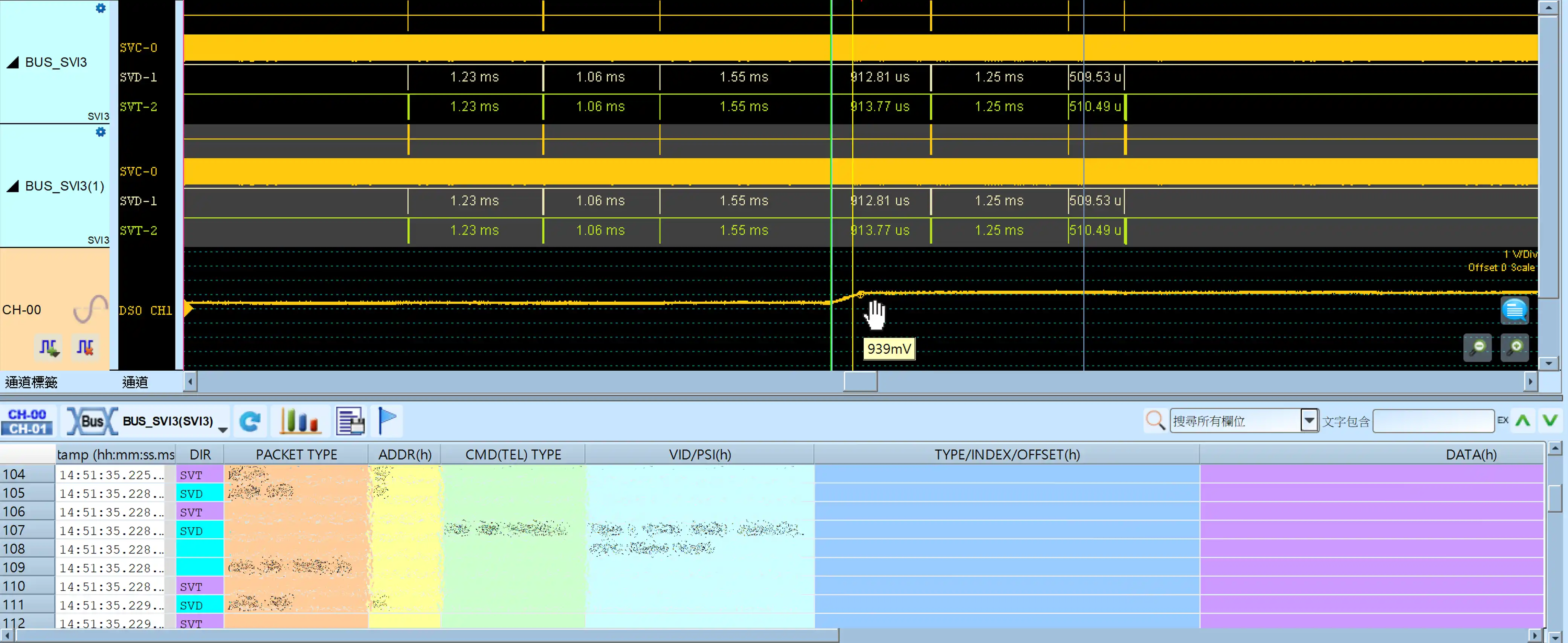

Combining a 16-channel logic analyzer with 4-channel analog inputs, it is ideal for simultaneously monitoring SVI3 commands and the voltage changes of VRMs (Voltage Regulator Modules).
Multiple trigger methods:
-
Use the rising or falling edge of the VRM voltage as the trigger to trace back the protocol and identify the command that caused the voltage change.
-
Conversely, a specific protocol command can be used as the trigger to observe the corresponding VRM voltage response.
