Protocol Exerciser

Protocol Exerciser

out of Stock
PX2816B

Base unit only — additional accessories required (see configurator below).

Key Highlights
• Generate protocol traffic on I3C, I2C, SPI, and UART simultaneously
• Error injection for fault testing and compliance validation
• Automation API for production test integration
• USB 3.0 interface, Windows 10/11

    Notes:
    • The PX2816B requires an interface pod to connect to your target device. Choose the protocol pod(s) that match your needs, and optionally add the LA POD for logic analysis.
    • Direct recording to device SSD — Users must purchase standard M.2 2280 PCIe SSD and
    install in slot on the bottom of the device

    Inquiry
    Compare

    Related Products

    About the PX2816B Protocol Exerciser

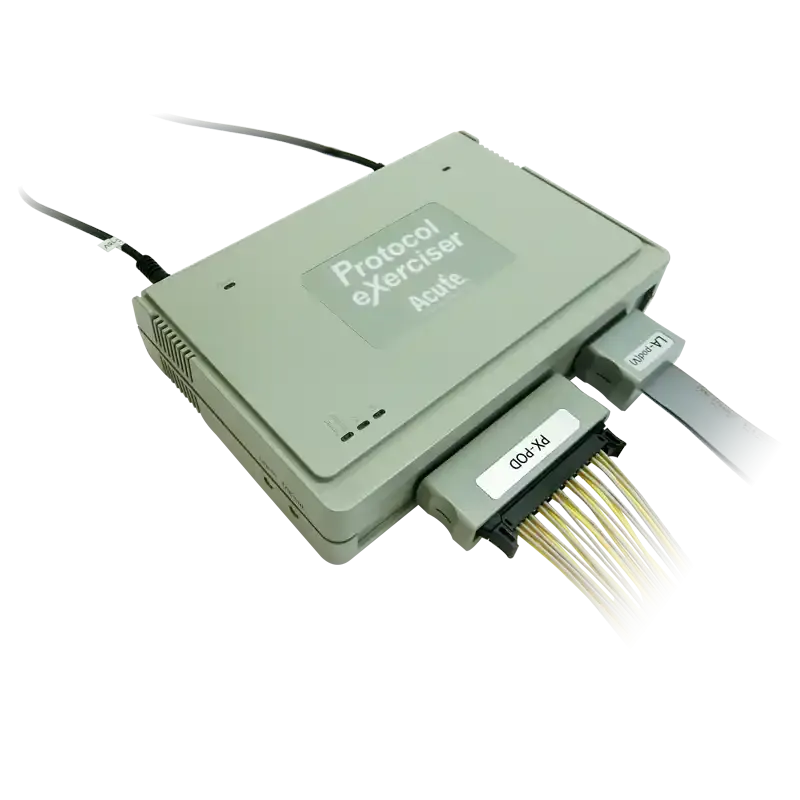

    The PX2816B is a multi-protocol exerciser that generates stimulus traffic on I3C, I2C, SPI, and UART buses for device validation, register verification, and compliance testing.

    Key Highlights

    • Generate protocol traffic on I3C, I2C, and UART simultaneously
    • Error injection for fault testing and compliance validation
    • Automation API for production test integration
    • USB 3.0 interface, Windows 10/11

      Build Your Solution

      The PX2816B requires an interface pod to connect to your target device. Choose the protocol pod(s) that match your needs, and optionally add the LA POD for logic analysis.

      Protocol Pods

      MIPI I3C + I2C + UART — covers all four protocols in one pod

      I²C interface pod for I²C device validation

      UART interface pod for UART device validation

      Logic Analysis

      16-channel logic analyzer pod for capturing additional digital signals alongside protocol exerciser activity

      PX2816B Spec.
      Data Interface

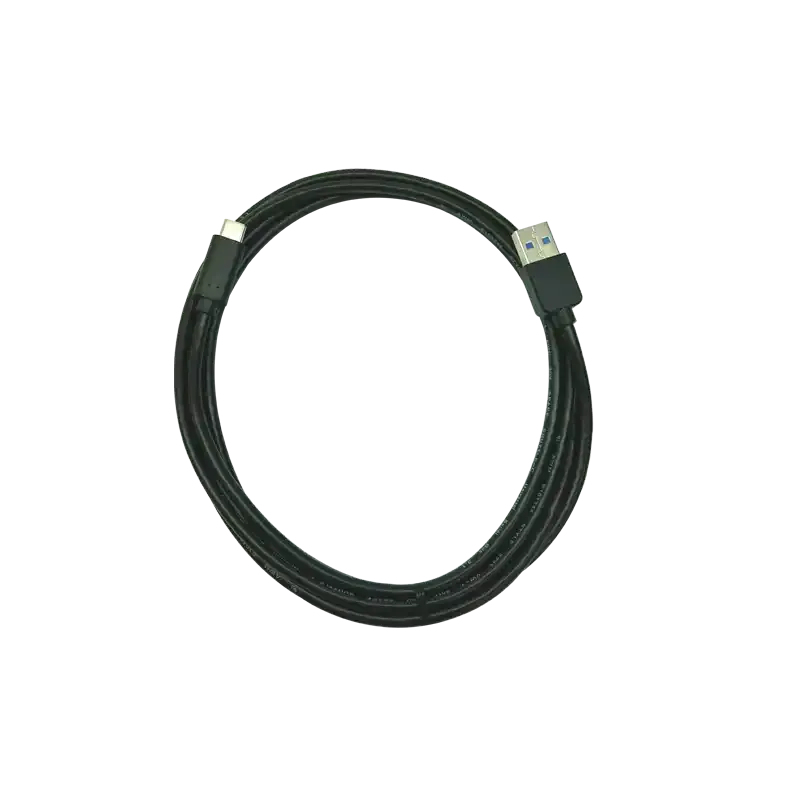

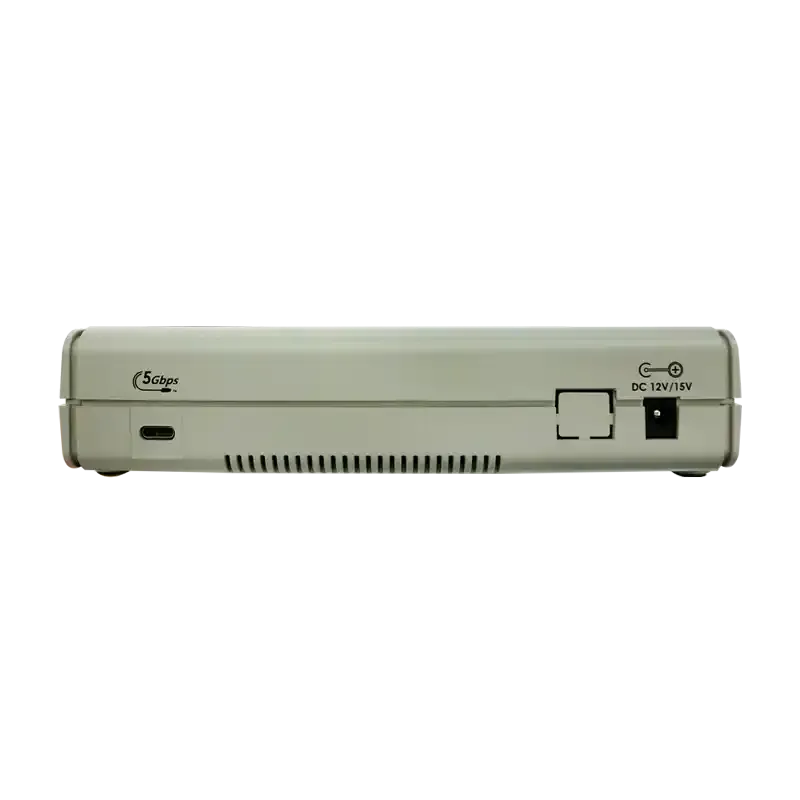

      USB 3.0 Type-C
      Storage Expansion
      SSD storage support (user-supplied M.2 2280 PCIe Gen3 or higher; for logic/protocol analyzer only)
      Channels
      8
      DC Power Output
      0.1V ～ 5V, power consumption measurement (1 channel)
      GPIO
      2-channel general-purpose I/O
      Max Sample Rate
      2 GHz
      [Specifications] PX2816B series
      [Manual] PX2816B series
      [Software] PX2816B series
      [SDK] PX2816B SDK
